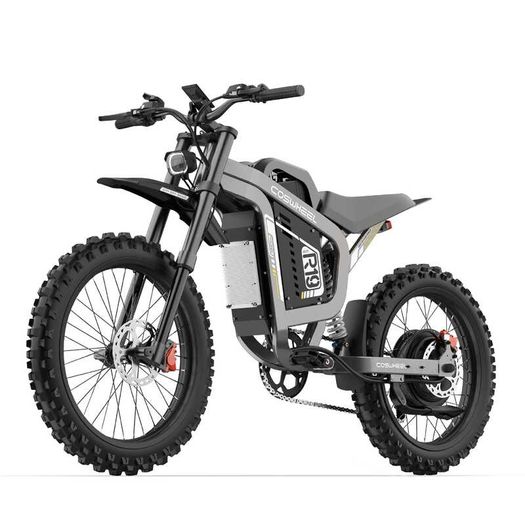

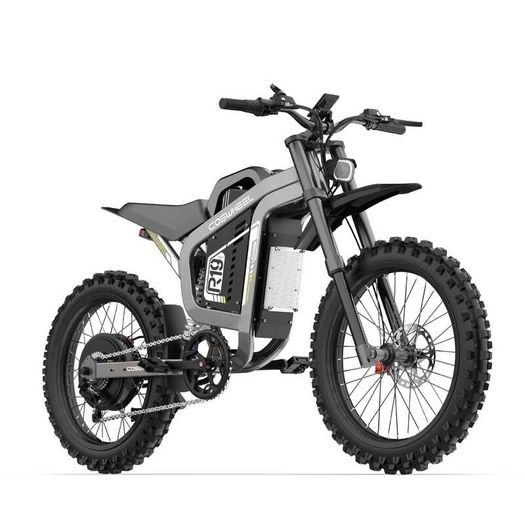

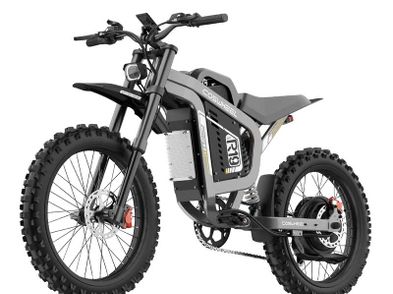

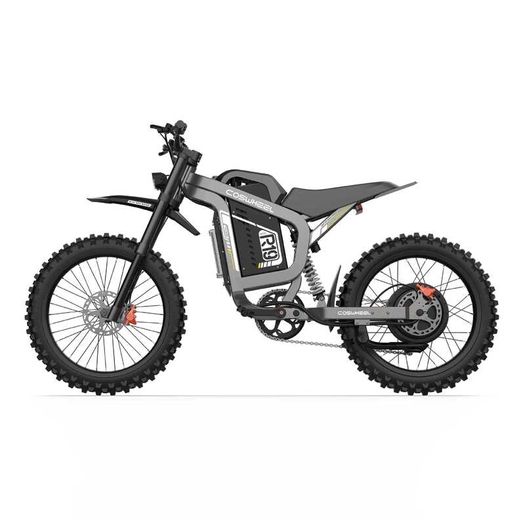

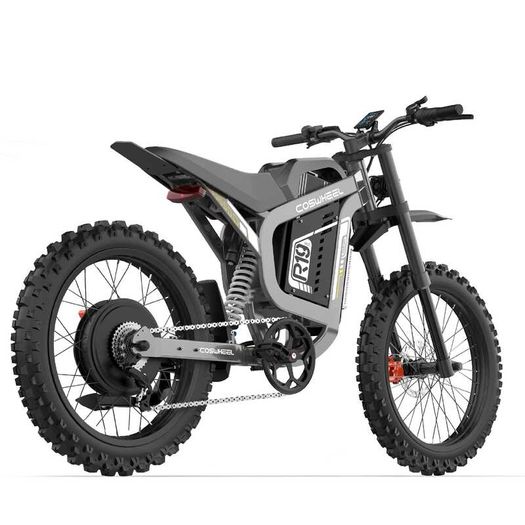

COSWHEEL R19 Electric Dirt Bike

Visit www.electricpower.ie

Link to the bike:

https://electricpower.ie/product/coswheel-r19-electric-dirt-bike/
FEATURES

R19 has European Certificate of Conformity (COC) Document and CE.You can use this COC to register.

R19 model have CE and COC certificates. The speed of R19 ebikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.At present, European customers have not reported any regulatory issues after riding.




Reliable Off Road Commuting Partner

The R19 is equipped with a 40AH high energy density battery, 2880WH, a maximum range of 124 miles (200km) (accelerator + pedal assist), plus front and rear adjustable damping suspension and dual-piston heavy hydraulic brakes, making your adventure very safe

Best Budget 72V 6000W Electric Dirt Bike

R19 is the most cost-effective 72V electric dirt bike launched by COSWHEEL. Peak 6000W (rated 3000W) rear drive motor, torque 120N.m, light throttle, maximum speed 50mph (80km/h). Compared with other brands of the same configuration products, the same performance, better price, and reliable quality, let you enjoy the adventure journey more easily.

R19 Every Part Counts

Aluminum Alloy Frame

R19 frame is made of Hydroformed Triple-Butted 6061-T6 Aluminum Alloy, which is stronger and more reliable than other brands of iron frames, and is not easily corroded or aged. At the same time, our frames have undergone more than 10,000 collision tests to ensure your safety.

Safety Power Interface

The R19 72V 40AH battery has a high-quality discharge port with a max voltage of 84V and a 6A charger, fully charging in 6-7 hours. A full charge offers a range of up to 124 miles (200km) with both accelerator and pedal assist. Maintaining a speed of 25mph (40km/h) is more battery-friendly.

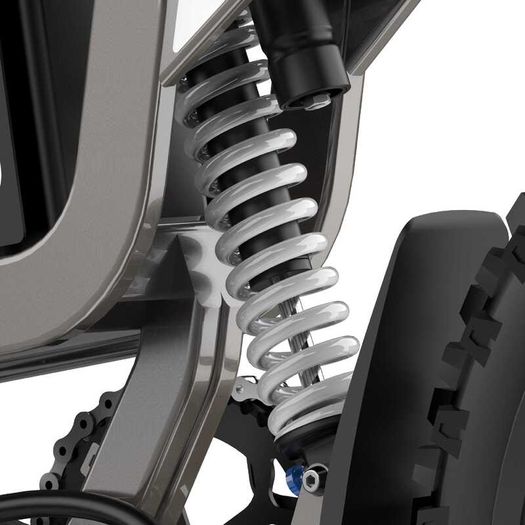

Adjustable Rear Suspension

The R19 rear suspension is equipped with a white 300mm adjustable damping shock absorber. The blue rotary button on the top can adjust the downward damping pressure, and the red rotary button on the bottom can adjust the upward damping pressure.

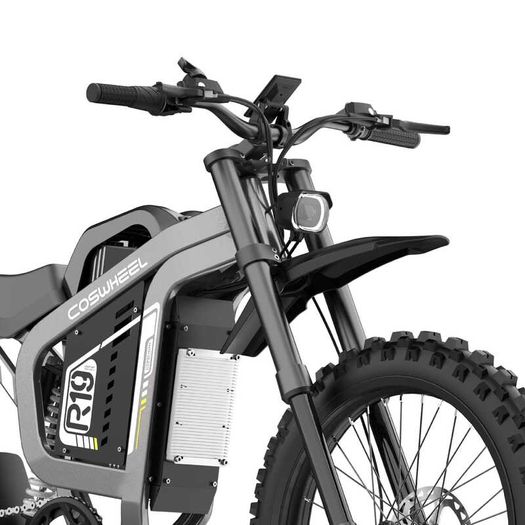

Adjustable Front Suspension

The front fork has an inverted hydraulic shock absorber with adjustable damping and 200mm suspension travel. By rotating the red button on the right, you can slowly adjust the oil pressure to adjust the damping, making the front suspension rebound slower or faster.

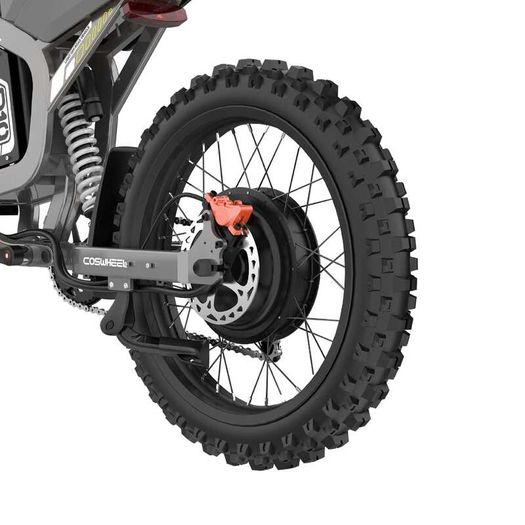

Heavy Duty Hydraulic Brakes

The R19 is equipped with a heavy-duty dual-piston hydraulic brake system, with a front wheel brake pad of 220mmX2.8 and a rear wheel brake pad of 180mmX2.8, providing heavy and stable brakes.

CHAOYANGOff-road Tires

19*2.75 inches CHAOYANG Off-road tires（the front wheel 70/100-19M/C high-strength off-road tire and the rear wheel 80/100-19M/C high-strength off-road tire ） can easily cross gravel, mud and bumpy roads.

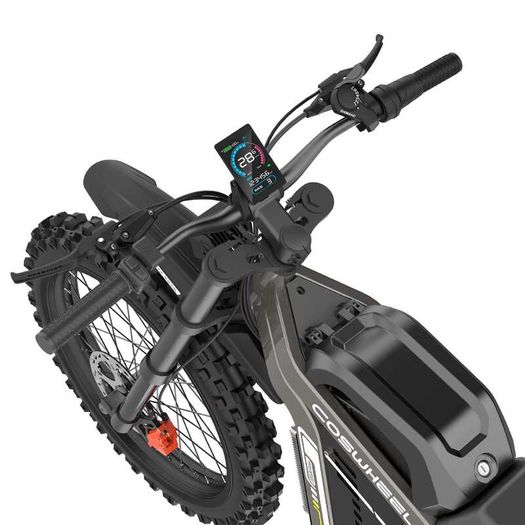

3.5" LCD Color Display

Place the NFC card below the 3.5" color display to unlock the R19. When first unlocked or after 3 seconds of inactivity, the bike enters neutral “P” mode and won’t start if the throttle is twisted. To resume throttle, hold the brake handle firmly.

Switches For Feature Sets

Unlock the R19 by placing the NFC card on the display. The left handle has 3 gears to switch throttle speed, with a max speed of 50mph (80km/h) in gear 3. Hold the top button to set a 15mph (25km/h) speed limit (display shows "25km/h"). Hold again to restore the 50mph (80km/h) limit (display shows "99km/h"). Press the "M" button to change display functions.

Battery Lock

The R19 is equipped with a removable power supply. When you need to remove the battery, please unplug the discharge port on the battery and loosen the lock. When you put the battery back in, remember to lock the battery lock to prevent the battery from shaking during riding, which may cause danger.

Top Speed: Class 2/3, 50 Mph (80Km/h)
Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)
Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm
Battery: 72V 40Ah Lithium Battery
Energy: 2880Wh
Front Suspension: Inverted hydraulic shock absorber with adjustable damping, 200mm Travel
Rear Suspension: Adjustable Damping, 300mm Travel
Front Brakes: Double piston hydraulic oil brake, Equipped with 220mm*2.8 brake disc
Rear Brakes: Double piston hydraulic oil brake, Equipped with 180mm*2.8 brake disc
Front Tires: 70/100-19 professional off-road tire
Rear Tires: 80/100-19 professional off-road tire
Throttle: Grip Twist Throttle
Charger: 84V 6A Charger
Charging Time: 6.0-7.0 Hours
Display: 3.5" LCD high-brightness color screen
Controller: 72V 80A
Front Light: 12V Headlight

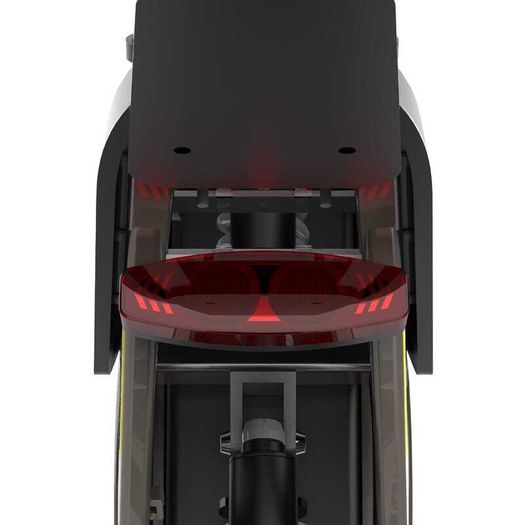

Rear Light: LED
Pedal Assist: 3 Levels
Unlock Method: NFC Card
Sensors: Speed Sensor
Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
Rear Derailleur: Shimano 7-Speed
Chain: 7-speed Anti-rust, 1/2" * 3/32"
Handlebars: Split Handlebar, φ32 φ22 Sand Black
Suitable Height: 5'1" - 6'5"(155-200cm)
Seat Height: 32.6" (83cm)
Bike Height: 41.7" (106cm)
Wheelbase: 47.8" (121.5cm)
Handlebar Width: 27.2" (69cm)
Bike Weight: ≥99lbs (with Battery) (≥45kg)
Maximum Load: 440lbs (200kg)
Safe Load: 330lbs (150kg)
Overall Size: 74.8" * 27.6" *43" (190*70*109cm)

Why Choose Coswheel R19

Electric Dirt Bike

Coswheel R19 Focused on simplicity and ease,Designed for active lifestyles,the Shimano 7-speed derailleur and rigid aluminum full suspension fork make it a low-maintenance choice for city riders,and offer enhanced control and comfort for diverse terrains.

Its Shimano 7-speed derailleur and rear motor deliver dynamic performance for riders who prefer versatility.

The hydraulic front suspension fork, with the 19" puncture protection tires, effectively cushions the shocks from diverse terrains. Riding this bike brings you much comfort and easiness.

Yes, the 72V 40Ah battery provides a reliable range of up to 200 km for extended adventures.

Absolutely! It's designed to load up to 200kg,perfect for carrying camping gears and daily necessities.

The front and rear lights ensure visibility during every ride, day or night, and the hydraulic disc brakes help stop the bike timely and quickly

UL2849 test report
COC certification
GCC test report
EU EN15194 and CE certification
The VIN number (Serial number) of the R19 ebike is in the middle of the front fork of each R19 (please note that the VIN number of the R19 is unique and cannot be repeated)
R19 Ebike*1/Fender*2/Charger*1//Tool Bag*1
