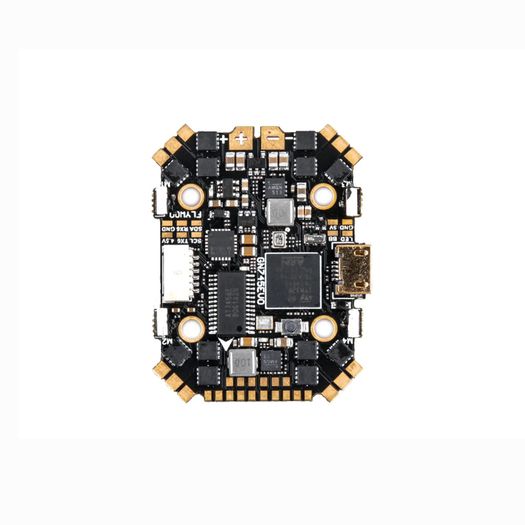

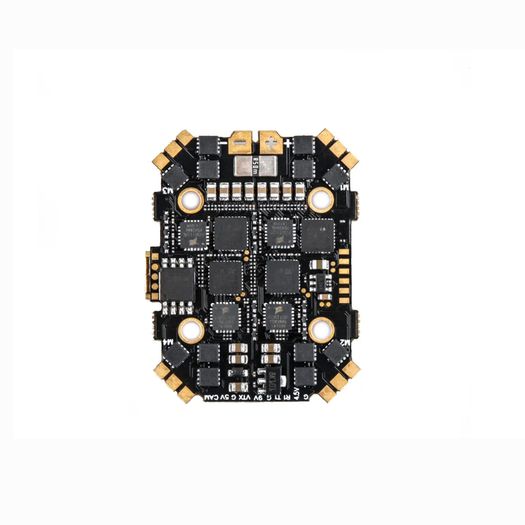

X3 Flywoo Goku Series Aio Goku Hdf745 40a Fc

F745 BGA chip and AM32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box,

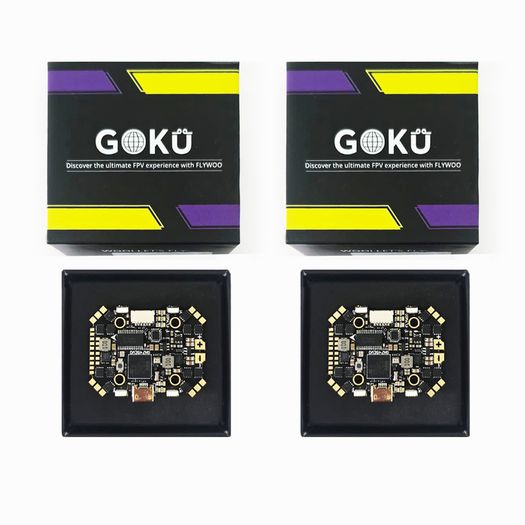

This sale includes 2 boxed new and 1 box opened unused.

Full intergrated stack
for 04 and 03 DJI Airunits.

WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.
This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for ultralight quad! It will be the most powerful FC AIO board in 2021.


HD745EVO AM32 40A
Specification:
MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
Gyro: ICM42688
Barometer: BMP280
Onboard LED：WS2812*4
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
9V Power Out: 1.5A max（3S voltage input）
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max

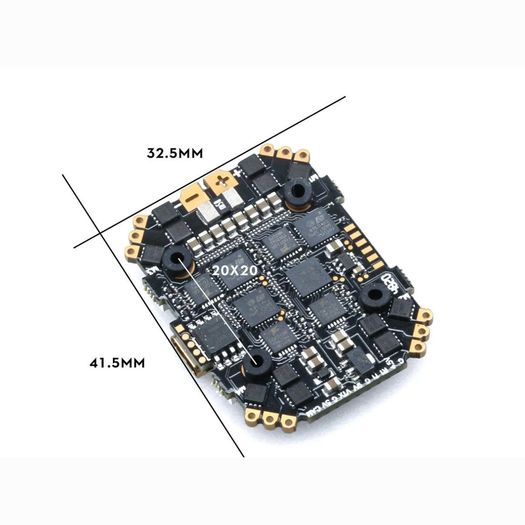

Dimensions: 41x32mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 8.5g

Built-in 40A BL_32 4in1 ESC
Support AM32
