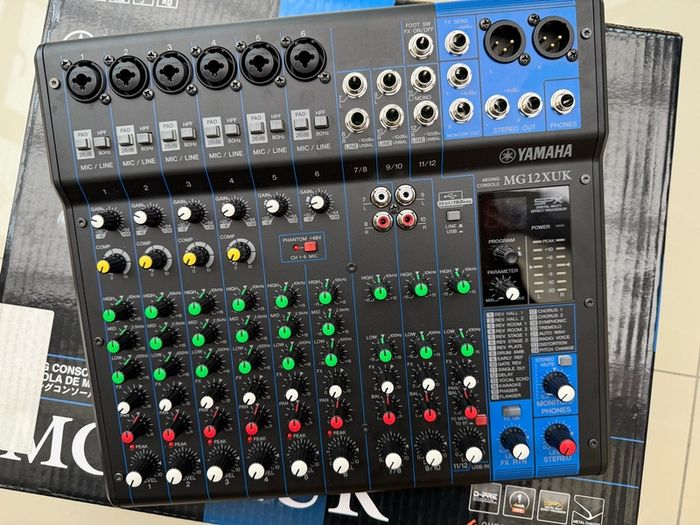

Yamaha Mg12xuk

Selling brand new Yamaha MG12XUK Mixing console.

Description:

The Yamaha MG12XUk is an analog USB mixer, with superb quality preamps and all the control you need in a compact package. It shows small-scale mixers don't have to compromise on sound quality. The class-A D-PRE preamps deliver sound reproduction with great clarity and detail. Get great results every time.

Yamaha MG XU Mixers integrate smoothly with your digital world. An integrated 2-in/2-out USB interface, and bundled Cubase AI software mean you can easily connect to a computer or laptop and get great live recordings in seconds.

Whether you're making corrective tweaks or adding some creative flair to your mix, you can take advantage of Yamaha's SPX digital effects engine. A suite of 24 editable effects will be available to you in an easy-to-control format. Get the best from your sound no matter what you're mixing.

Features:

Discrete Class-A mic preamps
High quality sound op-amp
Switchable phantom power & PAD switch
1-knob compressors
AUX input
EQ & high-pass filters
Variety of input & output connectors
LED level metering
Built-in SPX digital effects
Metal chassis
Includes Cubase AI downloadable software

Specifications:

Input Channels
Microphone: 6
Line: 6 x Mono + 3 x Stereo
Output Channels
Stereo Out: 2
Monitor Out: 1
Headphone Output: 1
AUX Send: 1
Bus:
1 x Stereo
1 x Aux (FX)
On-Board Effects: 24 x SPX Algorithms Effects
Phantom Power: +48V
USB Interface: USB 2.0, 24-Bit/192kHz
PAD: 26dB (Mono)
HPF: 80Hz, 12dB/oct (Mono)
Compressor
Threshold: +22dBu to -8dBu
Ratio: 1:1 to 4:1
Output Level: 0dB to 7dB
Attack Time: Approx. 25msec
Release Time: Approx. 300msec
EQ:
High: 10kHz Shelving (+15dB/-15dB Gain)
Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
Low: 100Hz Shelving (+15dB/-15dB Gain)
Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
Crosstalk: -83dB
Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
Power Consumption: 22.9W
Dimensions
Height: 91mm
Width: 315mm
Depth: 297mm
Weight: 3kg
