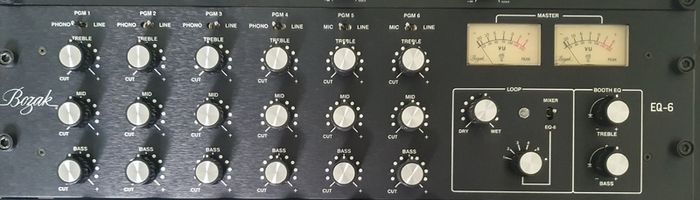

Bozak EQ6

6 channel 3 band EQ with effects loop control

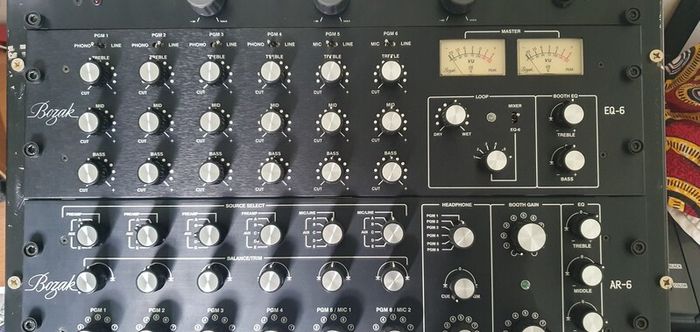

The EQ-6 with its individual Isolator EQ control over the six inputs and coupled with this the routing of the loop and effects across all inputs perfectly complements the Bozak AR-6 mixer. The flexibility of the EQ-6 allows it to be used as a standalone EQ section should you require it.

Channels 1~4 are selectable between Phono or Line input while channels 5~6 are selectable between Line or Microphone input. Both the Inputs and the outputs of each channel are on RCA connectors and the output is at line level.

The Loop control allows the DJ to add their choice of effects to any of the six input channels or add effects to the master loop of the mixer, a mix control is included to allow the DJ to adjust the mix between the Dry (without effect) signal and the Wet (with effect) signal.

When connected to the master output of the mixer, the stereo analogue VU meters will display the main output of the mixer and feature LED peak indicators.

The Booth EQ features adds Bass and Treble control for the booth output of the AR-6 mixer.

Bozaks overall frequency response is second to none, we do not use low or high pass filtering in our circuits so you hear and feel the full sub and high frequencies.

Fitted with ALPS pots, carbon resistors, polyester mylar capacitors and ultra low noise hi-fi grade toroidal power transformer all culminating in Bozaks signature rich warm sound.

3 band Isolator per channel with 12dB per octave cross over slopes:

High                                             4KHz-25KHz+

Mid/Treble                                  400Hz-4KHz

Bass/Mid                                    16Hz -400Hz
