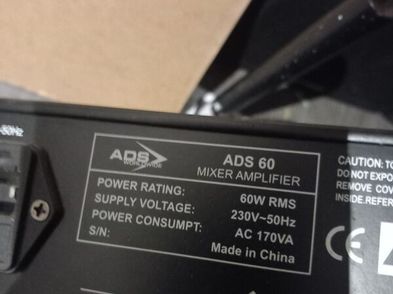

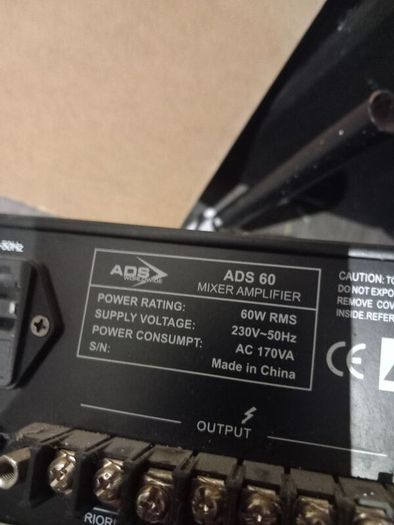

ADS 60 Mixer Amplifier

The ADS60DF is a mixer amplifier with 60W multiple type output. It comes with priority paging for MIC1 connection, is equipped with 3x MIC/LINE inputs, 1x AUX output. It provides output for speakers in low impedance and 70/100V lines. It features a ray of front controls includng separate volumes, bass and treble, and master volume. It is ideal for paging announcements and background music applications in retail shops, cafes, schools, offices and production facilities.

• Output power: 60W
• Output impedance: 4-16Ω, 100V
• Output: 1x RCA L/R
• Inputs: MIC1 (front 6.3mm), MIC2/AUX2 (XLR/RCA) with gain control & phantom power 48V, Fire Alarm (terminal blocks)
• Speakers output: 70V/100V/4-16Ω (block terminals)
• Frequency response: 80Hz to 16kHz
• THD: 0.2%
• Tone change: Bass & Treble
• Operating temperature: –20 to +50°C
• Fire Alarm: Closed contact will mute all other inputs except MIC1 (priority)
• Power supply: 110 to 240V AC, 50/60Hz (provided)
• Dimensions (HxWxD): 50x250x225mm
