gas leak detector

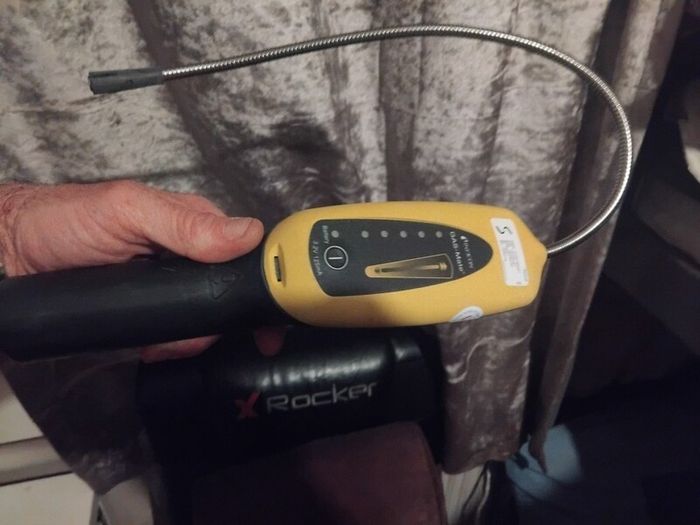

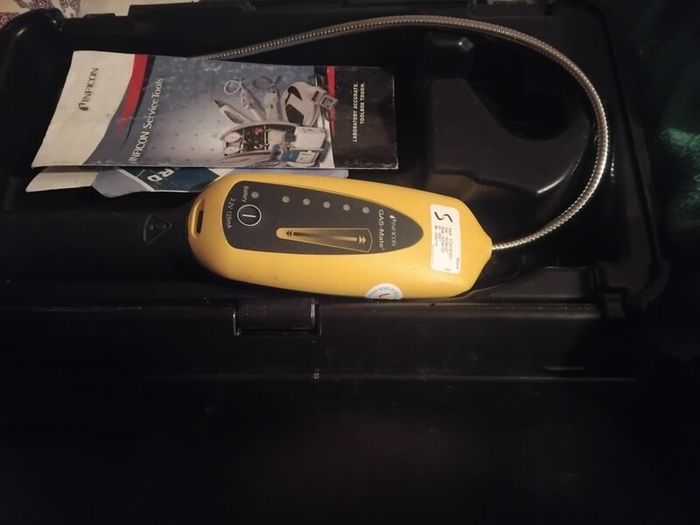

Inificon Inficon GAS-Mate Combustible Gas Leak Detector 718-202-G1 is perfect for checking leaks in residential and commercial combustion appliances, such as natural gas or propane fired heating systems, or gas pipelines. Now there is a high-quality, economical and portable gas leak detector. Inficon GAS-Mate combustible gas leak detector uses leading-edge technology to detect hydrocarbons and other gases with twice the sensitivity of competing models.
Less
Safety Certifications
Intrinsically Safe for Class I, Division I, Groups A-D, T4 and II 3G Ex nA nL IIC T4 X as per MET Laboratories Listing #E112145
Highlighted Features
Adjustable sensitivity
Gas Type
Propane, Ammonia, Butane, Cyclopentane, Ethane
Alarm Threshold
5 ppm methane
Response Time
Ready to quickly pinpoint any gas leaks after warm up for a few seconds
Sensitivity
Sensitive to 5 ppm methane, Adjustable, Adjustable sensitivity
Accuracy
5 ppm Methane
Detection Highlights
Adjustable sensitivity, Auto zeroing for ignoring background gas levels in leak test area
Detection Method
Combustible gas sensor
Detection Range
5 ppm (Gasoline)
Measurement Unit
ppm
Calibration
No
Indicator Type
Multiple LEDs, Variable intensity audio alarm
Alert Type
Multiple LEDs, Variable intensity audio alarm
Safety Features
Intrinsically safe (for use in combustive/explosive environments)
Power Source
2 D-size (1.5V) alkaline batteries
Battery Life
25 hours
Battery Type
D-size (1.5V) alkaline batteries, Duracell® MN1300 (to maintain intrinsically safe approval)
Voltage
1.5V (per battery)
Dimensions
3 in (overall width)
Color
Black
Weight
1.54 lb. (0.700 kg) (with batteries)
Design Highlights
Small sensor and probe tip
Material

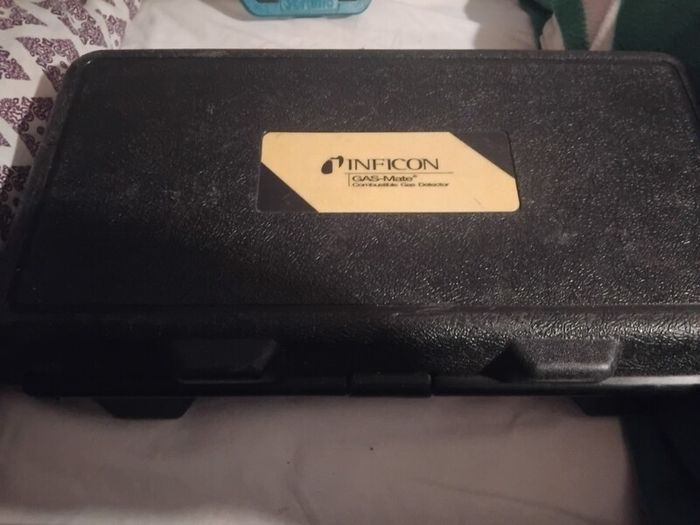

Hard plastic (carrying case)
Environment
Combustive/explosive environments
Top Use Cases
Pinpoint leaks fast, Detect flammable refrigerant and combustible gas leaks, Flammable refrigerants like R290, R600
