M3 - M12 BaerCoil Workshop Kit (Helicoil Type) Thread Repair Workshop Kit

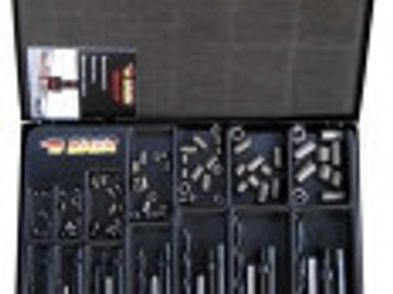

BaerCoil Thread Repair Workshop Kit M 3 - M 12
in metal box

ONLY €182.66 NO OFFERS
www.jgengineering.ie

Box Content:

BaerCoil Drill HSS
STI Bottoming Tap HSSG
BaerCoil Inserting Tool
BaerCoil Tang Break Tool
+ Wire Thread Inserts - type: "free running" - lengths: 1.5 D - 2.5 D
different lengths for most applications

BaerCoil Tap Inserting Tool Tang Break Tool Drill Wire Thread Inserts length: 1.5 D Wire Thread Inserts length: 2.5 D
M 3 x 0.5
EBW03
BZ003
3.2 mm
10
5
M 4 x 0.7
EBW04
BZ004
4.2 mm
10
5
M 5 x 0.8
EBW05
BZ005
5.2 mm
10
5
M 6 x 1.0
EBW06
BZ006
6.3 mm
10
5
M 8 x 1.25
EBW08
BZ008
8.3 mm
10
5
M 10 x 1.5
EBW10
BZ010
10.4 mm
5
5
M 12 x 1.75
EBW12
BZ012
12.4 mm
5
5
Lengths of the Wire Thread Inserts: 1.5 D and 2.5 D (D= Diameter) - stainless Steel


BaerCoil instruction for use
Technical Information
Drill Sizes
Metric Wire Thread Inserts - Dimensions


BaerCoil:
- Thread Repair of damaged or worn-out threads
- Recovery of rejected items
- Thread Armour Plating. For material with low shear strenght eg. aluminium alloys and magnesium alloys.

Due to narrow and exact tolerances the new thread normally is stronger than the original one.
Use in machine-building, electrical, automotive, medical and aerospace industries.
