Solar charge Controller 12V/24V MPPT

Solar charge Controller 12V/24V MPPT Solar charge Controller 12V/24V MPPT Campers & Motorhomes
Condition:
Brand new

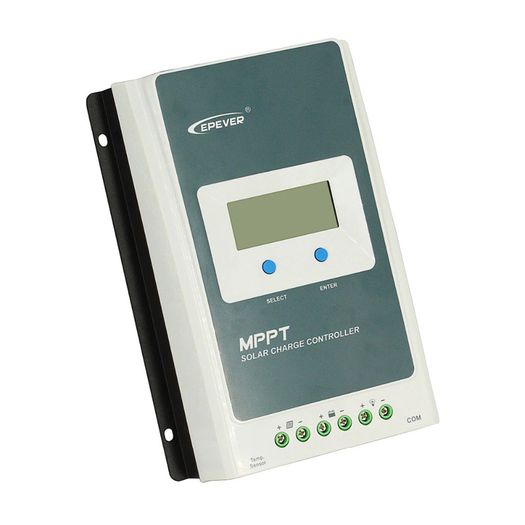

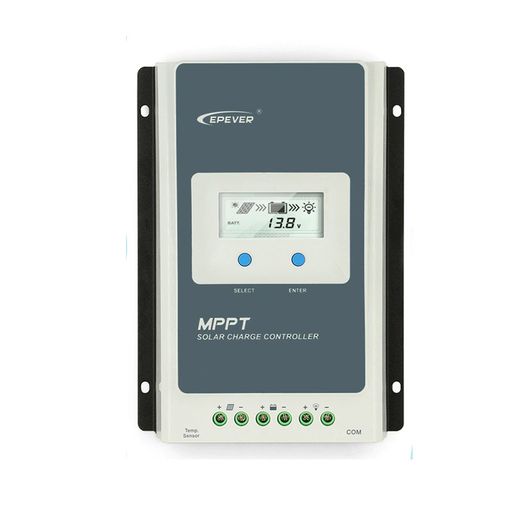

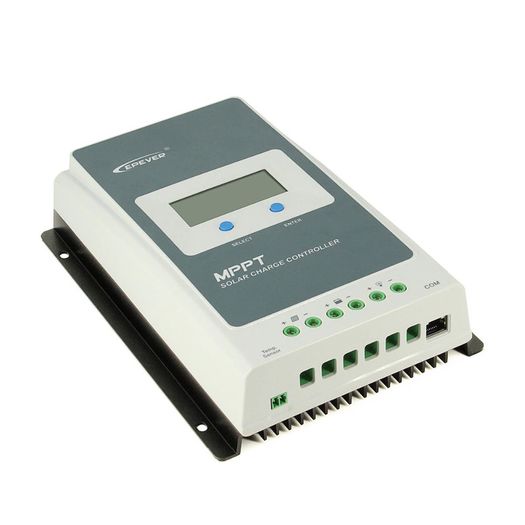

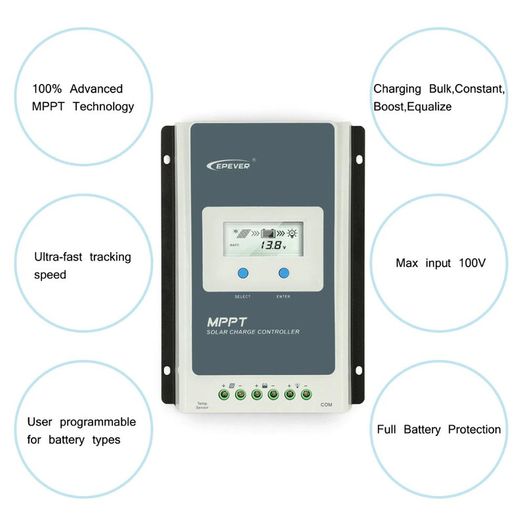

Solar charge Controller 12V/24V

EPEVER Tracer3210AN

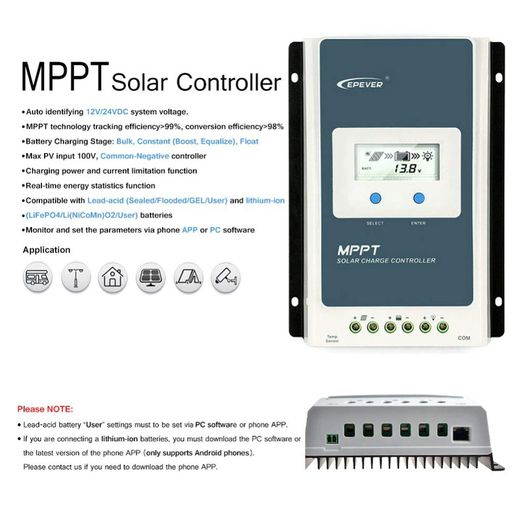

Advanced MPPT technology, with efficiency no less than 99.5%
Ultra-fast tracking speed and guaranteed tracking efficiency
Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
Wide MPP operating voltage range
High quality components, perfecting system performance, with maximum conversion efficiency of 98%
Accurate recognition and tracking of multiple-peaks maximum power point
International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
Charging power and current limitation function
Compatible with lead-acid and lithium-ion batteries
Battery temperature compensation function
Real-time energy statistics function
Overheating power reduction function
The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Monitor and set the parameters via mobile phone APP or PC software
Full-load operation without any drop in capacity within the range of working environment temperature


System nominal voltage 12/24VDC Auto
Rated charge current
Rated discharge current
Battery voltage range 8~32V
Battery Type Lead-acid(Seal,Flood,Gel)and Lithium-ion batteries
Max. PV open circuit voltage 100V
MPP voltage range (Battery voltage +2V)~72V
Max. PV input power
Self-consumption ≤12mA
Discharge circuit voltage drop ≤0.23V
Temperature compensate -3mV/°C/2V (Default)
Grounding: Common negative
RS485 interface 5VDC/100mA
LCD backlight time 60S (Default)

Working environment temperature -25°C~+50°C
Storage temperature range -20°C~+70°C
Relative humidity ≤95%, N.C

Dimension 228x164x55mm
Mounting dimension 170x164mm
Mounting hole size Φ5mm

Terminal 6AWG(16mm2)
Recommended cable 8AWG(10mm2)
