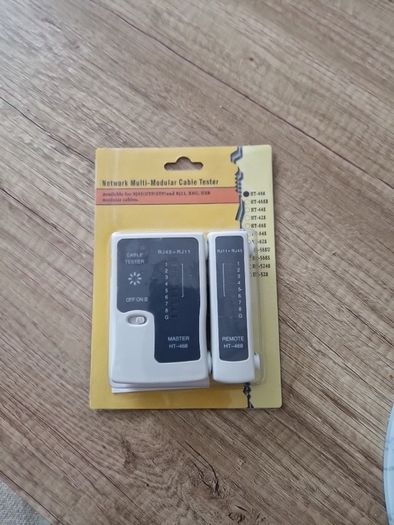

Network Multi- Modular Cable Tester

DESCRIPTION of RJ11 / RJ45 Network Cable Tester

RJ45 Network tester consists of:

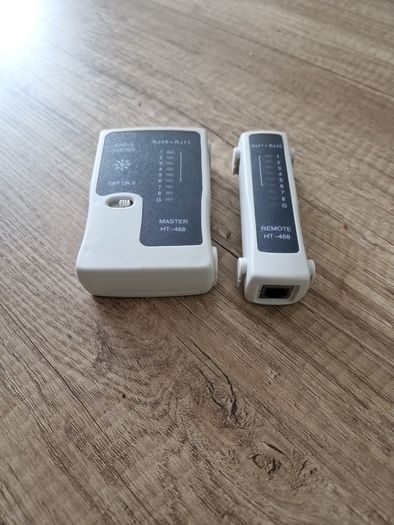

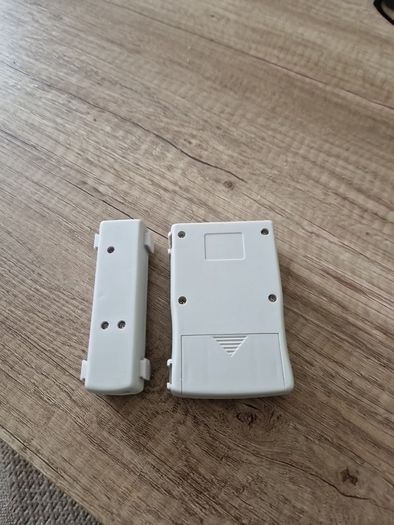

Cable tester Master unit

Remote Unit

Colour: Grey

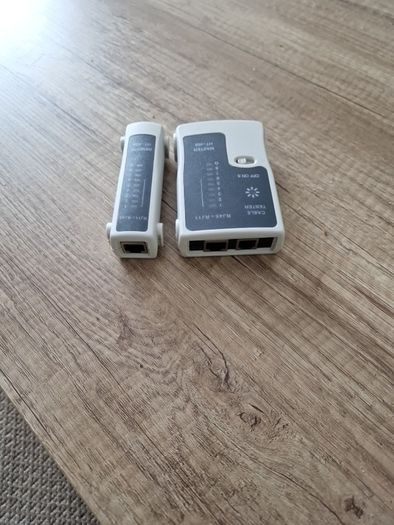

Inputs/Outputs: RJ11 & RJ45

HOW TO USE an RJ45 Network Cable Tester

Detach the master and Remote unit from each other

Plug the jack e.g. RJ45 into the master unit (ma

Plug the other end of the cable into the remote unit

Turn on the Master unit by sliding over the switch to either

ON - normal test mode

S - slow automatic mode

The tester now checks each of the 8 wires one after the other

If wired correctly the sequence on both the Master and remote unit will be:

1-2-3-4-5-6-7-8

If the cable is:wired incorrectly then the sequence on the remote unit will be out of sync

1-2-4-3-5-6-7-8

or if there is a short then

no light will come on in the remote unit.

Needs 9v battery( not included)

1piece €6
2pieces€10
3pieces€12

Collection in Swords
Cash only
