Cnet Cat6 Utp Copper Cable 24 Awg Pvc Ice Blue 305m Box - Qucat6pvc

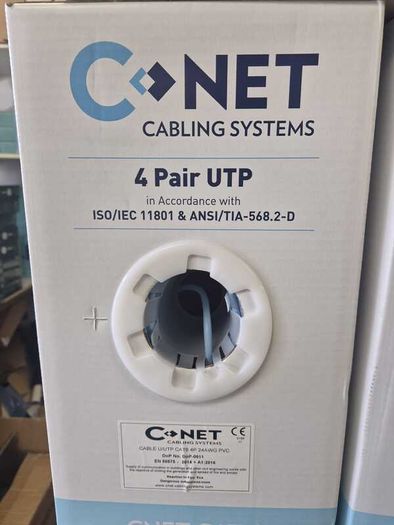

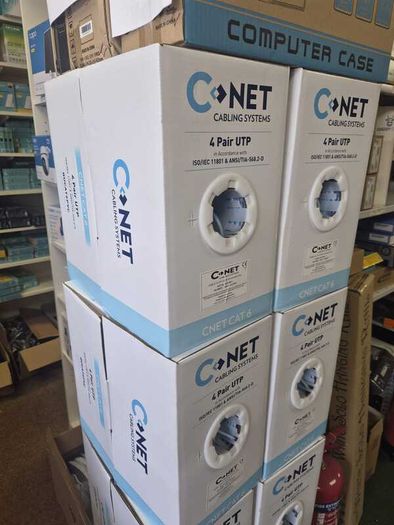

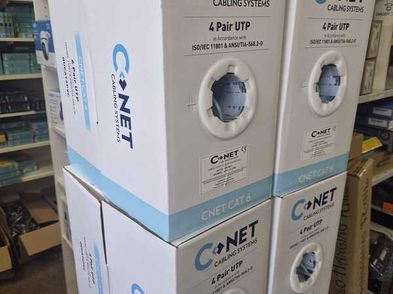

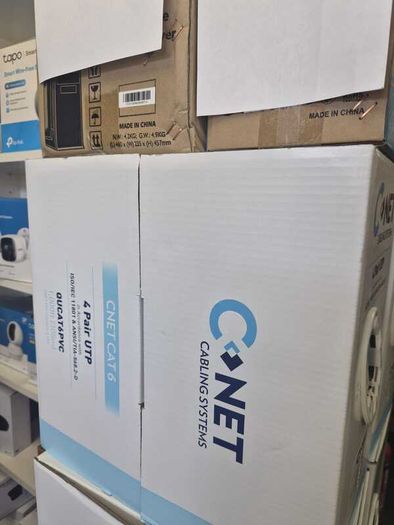

The C-NET QUCAT6PVC is a high-performance Category 6 UTP (Unshielded Twisted Pair) copper data cable designed for structured indoor network installations. It comes in a 305-metre pull box featuring an intelligent countdown marking system to reduce installation waste.Technical SpecificationsPart Code: QUCAT6PVCConductor Gauge: 24 AWG solid copper conductorsStructure: 8 colour-coded conductors twisted into 4 pairsInternal Separator: Central 'X' shaped polyethylene filler to minimize crosstalkOuter Sheath: Ice Blue PVC jacket with a 5.5mm overall diameterLength & Packaging: 305m (1000ft) inside a Fast Feed Reelex carry boxLength Marking: Sequential "305-0" metre print legendFire Safety Standard: CPR Compliant to Euroclass EcaCompliance Certifications: TIA-568-C.2, EN50173-1, ISO/IEC 11801, and EC VerifiedPhysical & Environmental PropertiesTotal Box Weight: 13.2 Kg (Cable weight: 4.10 Kg/100m)Box Dimensions: 210mm (W) x 405mm (H) x 405mm (D)Installation Temperature: 0°C to +60°COperating Temperature: -20°C to +75°CNominal Velocity of Propagation (NVP): 69%Bend Radius: 4x outer diameter when installed (8x during pull-through)
