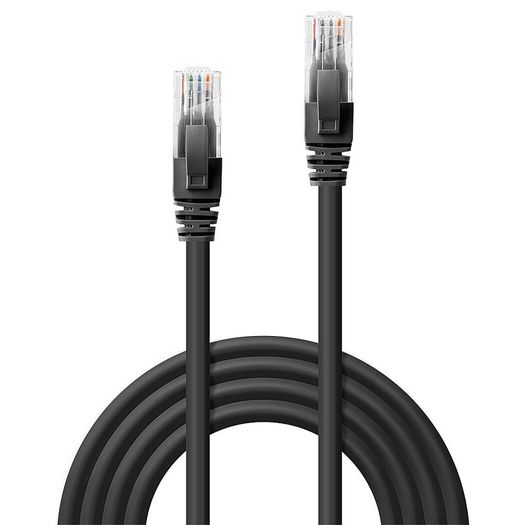

20m Cat.6 U/UTP Network Cable, Black

Description

Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Housing Material: Polycarbonate
Connector Plating: -
Pin Construction: Copper Alloy
Pin Plating: Gold plated
Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction

Length: 20m (65.62ft)
Colour: Black
Type: Cat.6
Jacket Diameter: 5.8mm (0.23in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Braid

Specifications

Supported Bandwidth: 250MHz
Nominal Attenuation: 32.8dB/100m @250MHz
Minimum Band Radius: 69mm (2.72in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 75°C (-4°F - 167°F)
