Grundfos ALPHA2 32-60 230V PN10 180mm Circulation pump

1 x available in stock (160)

Collection is available in the Kilkenny Area
or
Nationwide Delivery for €6 extra

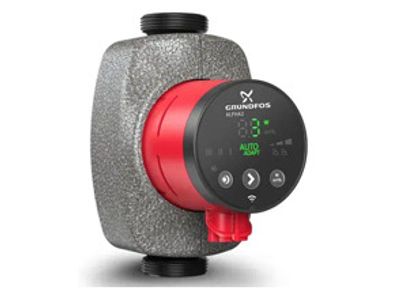

Grundfos ALPHA2 32-60 electronic circulator pump (99411221)

Grundfos ALPHA2 32-60 230V PN10 180mm
Grundfos ALPHA2 pumps are high-efficiency circulators, designed for heating and air-conditioning systems.

Pump Only, may Require Specific Electrical Connections.

The pump features AUTOADAPT which automatically adjusts the pump to system demands for optimal comfort and the lowest energy consumption as well as simple commissioning

Connection pump size 2"
Connection type Male thread
Fluid temperature 110 °C
Head max 6 m
Port-to-port lenght 180 mm
Power 230 VAC
Pressure 17 bar
Protection against magnetic particles Yes
Pump flow 3 m3/h
Pump lightness DN 32
Weight 2.30 kg

GRUNDFOS ALPHA2 is the new generation of small circulation pumps in the highest energy class "A". The ALPHA2 circulator is the youngest and most innovative member of the family of high quality Grundfos circulators. The use of these pumps is to circulate water in heating systems and in hot water systems.

The circulator pump meets the requirements of the EuP directive.

The pump shaft is made of ceramic and there is no risk of magnetic particles contained in the pumped liquid settling in the most critical parts of the pump.

AUTOADAPT function
In the case of the ALPHA2 pump, there are no concerns about the complicated settings and adjustment of the pump. If you leave the factory settings for AUTOADAPT, the pump automatically analyzes the heating system, searches for the optimal settings and adapts to the requirements and changes to heat. For a more detailed description of the AUTOADAPT function, refer to the enclosed catalog sheet. The AUTOADAPT function can be deactivated by selecting another mode (proportional or constant pressure or conventional three-speed operation).

Usage

One-pipe or two-pipe systems with radiators.
Floor heating.

Variable flow heating systems controlled by thermostatic valves.

Constant flow heating systems without thermostatic valves.

Systems with variable flow temperature.

Systems requiring reduced night traffic.

Pump features:

Power supply 230V.
Max. operating pressure 10bar.
Construction length 180mm.
Three modes of proportional pressure or constant pressure.
Operation as a classic three-speed pump.
Low power consumption (Class A).
Night Reduced Traffic.
Low noise.
Current consumption indicator el. energy.
Connect the power supply via the ALPHA socket.

Package contains
Pump
