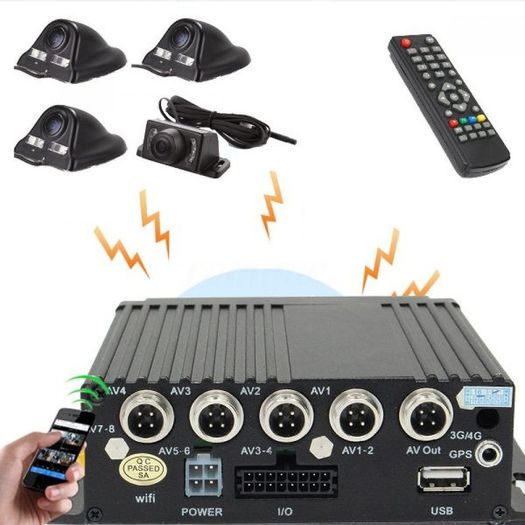

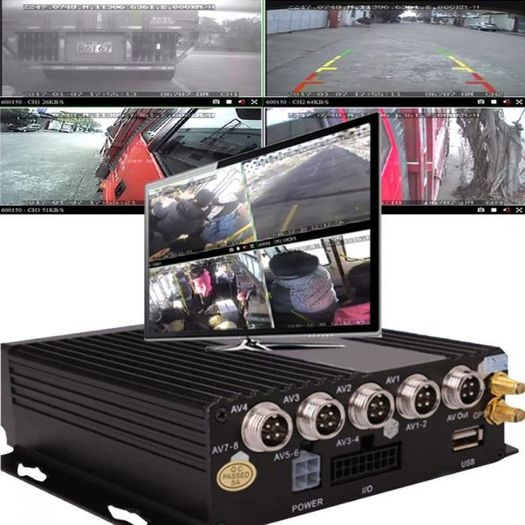

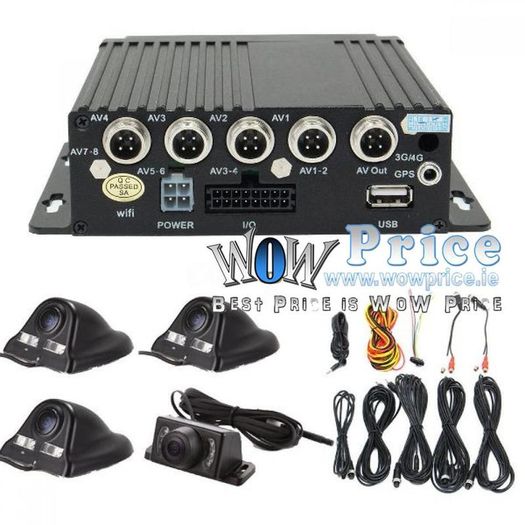

Car 4CH DVR Camera Security Video Recorder Rear View Kit

Name: 4ch Vehicle Car Mobile DVR Security Video Recorder
Model: SKU629786
Specification
Password safe: user password and administrator password two-class administration
Video input: 4ch
Video output: 1ch
Video standard: PAL, NTSC
Video format: AVI
Image compression: H.264
Audio input: 4ch port
Audio output: 1ch port
Image format: CIF/HD1/D1
Recording storage: SD card
Built-in accelerometer G - Sensor: support
Power input: 8-36V
Power output: 12V
Working temperature: -40℃-80℃
Compatible with: apply to all kinds of cars
Operating language: Chinese/English

Features
No-seam recording technology.

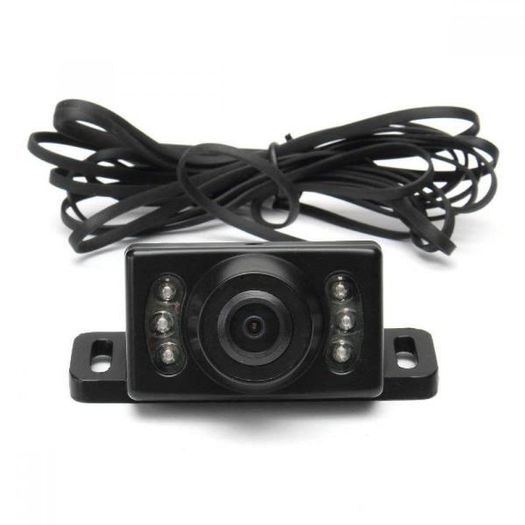

Come with 4 sony CCD 3.6mm 120° lens camera, 130 Million Pixels.
Support SD card up to 128GB (is not included), more convenient and vibration-proof than hard disk version.
Support four channel 4pin connector video and audio input, one channel AV connector video and audio output.
Support IR remote control.
Special design of encrption to protect recording files.
Support wide range of voltage input from 8V to 33，almost for all the car.
Compression Mode, Support 4CH real-time 720P Million Pixels AHD input and Analog Standard Definition camera input, or 2CH HD input + 2CH SD input;
Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, solving SD card file system collapse, data loss and cannot find SD card and file garbled, ensure the integrity of the data.
8-33V Adaptive Wide Voltage input, Super Low Power Consumption Design;
SD card storage (maximum support 128GB SD card. )
It can be completely resist car Vibration,Dust and others cause data corruption; Support GPS/BD/G-SENSOR ;
High Reliability Aviation plugs,High Cost Performance with reliable stability,simple and clear operation menu .

Instruction link: https://drive.google.com/open?id=0B6iMR-BFq92PRVNyRkhzRFdVcFU
Download Firmware Installation Upgrade Conversion English: https://drive.google.com/open?id=0B6iMR-BFq92PS1dvdGI4SzQ0eG8
Step: The upgrade file on the SD card root directory, the machine first do not pick up the power, insert the SD card into the machine and then power on, you will appear to upgrade the screen, waiting for automatic upgrade to complete the restart screen, remove the SD card.

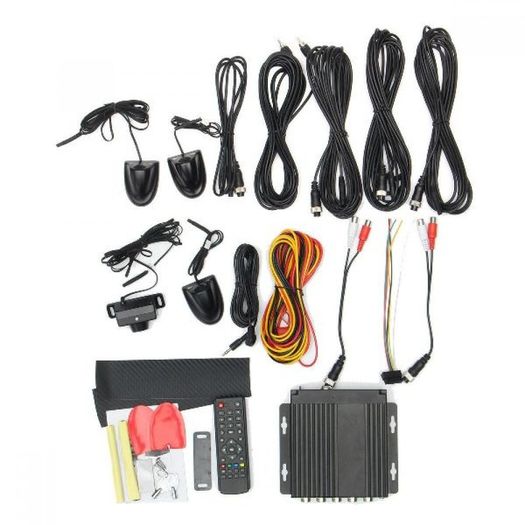

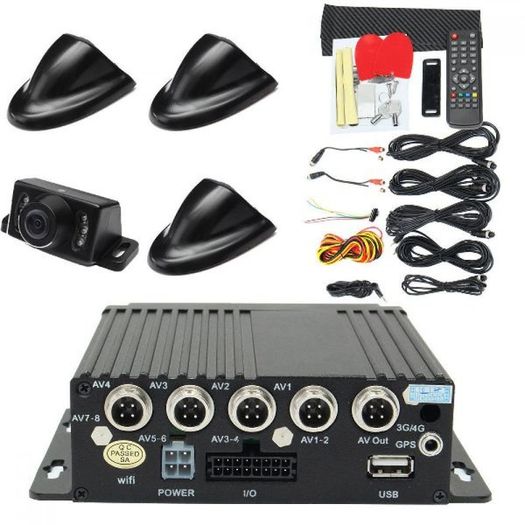

Package Included
1 x SW-0001A Mobile DVR

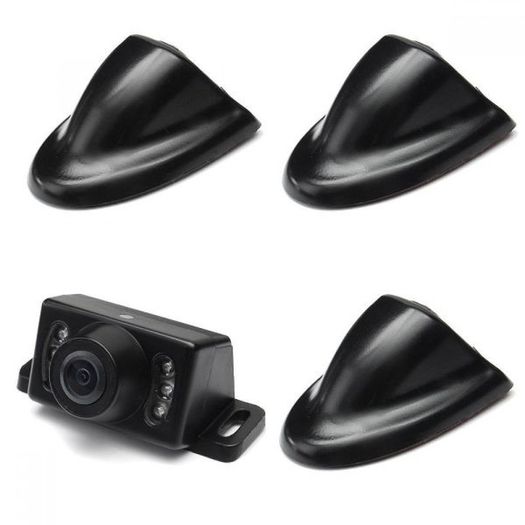

4 x CCD Lens Camera (Front/Back/Left/Right)
4 x Extension cord for camera(3m for Front/Left/Right, 1.5m for back)
1 x Power camera for DVR
1 x Audio output cable
1 x Extension cord for receiver
1 x AV Video Cable
2 x Heat silicone
2 x 3M Adhesive
1 x Magic stick
2 x Adhesive for door line
2 x Sealants
2 x Keys
1 x Remote Controller
1 x Packing box
